Azure Automation (Runbooks) + Azure Update Manager

Category: Operations

Architecture diagram

High-level view of the main components and data/control flows.

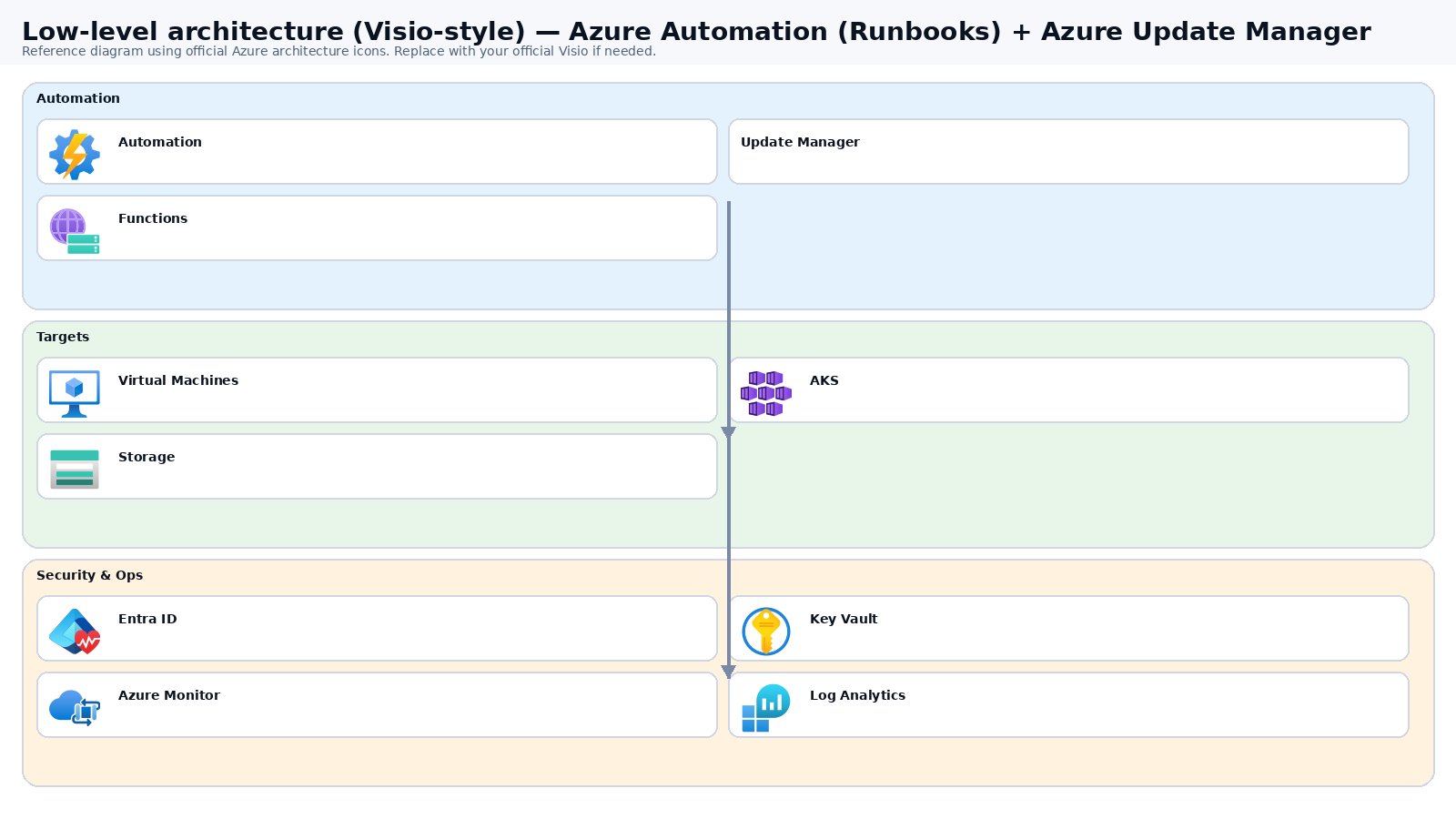

Low-level architecture diagram (Visio-style)

Implementation view (networking, security, ops). Click to open full size.

Low-level architecture details

Step-by-step implementation

Step 1/6

Define operational use cases and guardrails

• List automations: start/stop, certificate rotation, log cleanup, user onboarding.
• Decide approvals and change control for production runbooks.
• Use managed identity for least-privileged execution.

Validation checklist

• Stakeholders have signed off the scope, SLAs, and data/security requirements.
• You have documented naming standards, environments, and ownership (RACI).

Step 2/6

Create Automation Account and Runtime Environment

• Create Automation Account per environment.
• Prefer modern runtime environments; lock down networking if needed.
• Disable public network access when feasible.

Validation checklist

• Deployment completed; smoke tests passed; rollback plan confirmed.

Step 3/6

Secrets and credentials

• Store secrets in Key Vault, not in runbook variables.
• Grant Automation managed identity access to Key Vault secrets.
• Rotate secrets regularly and log access.

Validation checklist

• Security baseline applied (Defender/Policy/WAF/Firewall rules as applicable).
• No public endpoints unless explicitly approved; private endpoints verified where applicable.
• Alerts are configured for high-risk events.

Step 4/6

Integrate with Update Manager for patching

• Use Azure Update Manager for assessment and scheduled patching.
• Create maintenance configurations and assign to scopes.
• Track compliance dashboards.

Validation checklist

• Connections/authentication succeed and test messages/records flow through.
• Retries/DLQ/error handling are configured and validated with a forced failure.

Step 5/6

Job logs, alerts, and drift detection

• Send job streams to Log Analytics.
• Create alerts for job failures and long runtimes.
• Use Azure Policy to detect noncompliant VM settings.

Validation checklist

• Logs and metrics are flowing (check Log Analytics / Monitor).
• Alerts trigger correctly (test alert path to email/Teams/ITSM).

Step 6/6

Test in non-prod and promote

• Use source control integration for runbooks.
• Promote via pipeline and environment variables.
• Use feature flags / approval gates.

Validation checklist

• UAT completed with representative users and scenarios.
• Performance meets baseline; issues tracked and remediated.
